ArnoldiIterator

# Hamiltonian

$$H = -\mu\sum_{\mathbf{i}}c_{\mathbf{i}}^{\dagger}c_{\mathbf{i}} + t\sum_{\langle \mathbf{i}\mathbf{j}\rangle}c_{\mathbf{i}}^{\dagger}c_{\mathbf{j}}$$

# Code

#include "TBTK/PropertyExtractor/ArnoldiIterator.h"
#include "TBTK/Smooth.h"
#include "TBTK/Solver/ArnoldiIterator.h"
#include "TBTK/TBTK.h"
#include <complex>
using namespace std;
using namespace TBTK;
using namespace Visualization::MatPlotLib;
complex<double> i(0, 1);
int main(){
//Initialize TBTK.
//Parameters.
const unsigned int SIZE_X = 15;
const unsigned int SIZE_Y = 15;
const double t = -1;
const double mu = -4;
//Set up the Model.
Model model;
for(unsigned int x = 0; x < SIZE_X; x++){
for(unsigned int y = 0; y < SIZE_Y; y++){
if(x+1 < SIZE_X){
model << HoppingAmplitude(
t,
{x+1, y},
{x, y}
) + HC;
}
if(y+1 < SIZE_Y){
model << HoppingAmplitude(
t,
{x, y+1},
{x, y}
) + HC;
}
}
}
model.construct();
//Set up the Solver. The central value is perturbed slightly from -4
//to avoid division by zero because the model has an eigenstate exactly
//at E=-4.
const unsigned int NUM_EIGEN_VALUES = 100;
const unsigned int NUM_LANCZOS_VECTORS = 200;
const unsigned int MAX_ITERATIONS = 400;
solver.setModel(model);
solver.setMode(Solver::ArnoldiIterator::Mode::ShiftAndInvert);
solver.setCentralValue(-4 - 1e-6);
solver.setNumEigenValues(NUM_EIGEN_VALUES);
solver.setNumLanczosVectors(NUM_LANCZOS_VECTORS);
solver.setMaxIterations(MAX_ITERATIONS);
solver.run();
//Set up the PropertyExtractor.
const double LOWER_BOUND = -4.02;
const double UPPER_BOUND = -3.8;
const unsigned int RESOLUTION = 1000;
PropertyExtractor::ArnoldiIterator propertyExtractor(solver);
propertyExtractor.setEnergyWindow(
LOWER_BOUND,
UPPER_BOUND,
RESOLUTION
);
//Calculate eigenvalues.
Property::EigenValues eigenValues = propertyExtractor.getEigenValues();

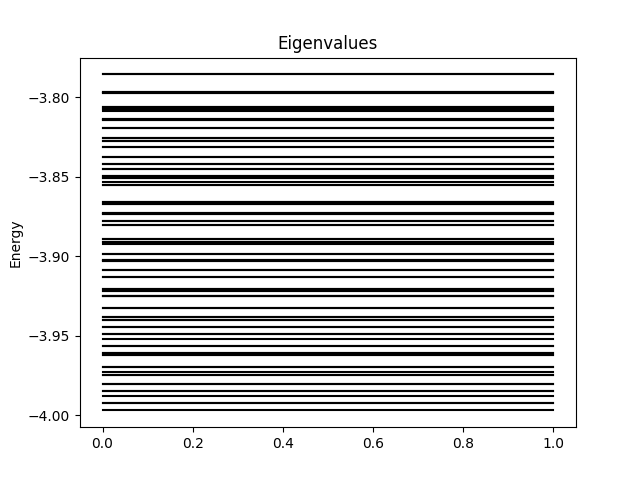

//Plot eigenvalues.
Plotter plotter;
plotter.plot(eigenValues);
plotter.save("figures/EigenValues.png");
//Calculate the density of states (DOS).
Property::DOS dos = propertyExtractor.calculateDOS();
//Smooth the DOS.
const double SMOOTHING_SIGMA = 0.001;
const unsigned int SMOOTHING_WINDOW = 201;
dos = Smooth::gaussian(dos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);

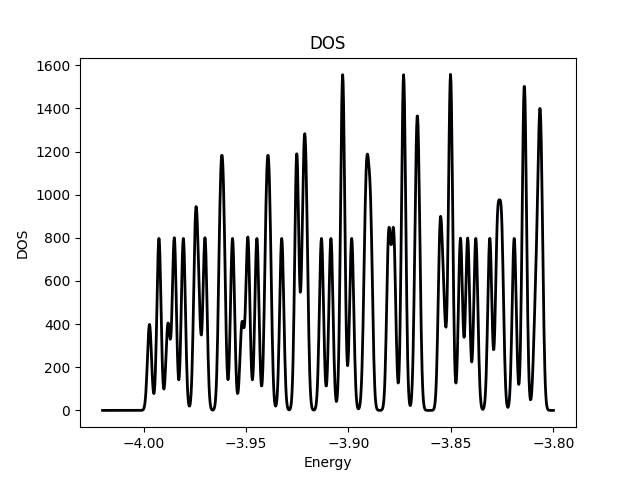

//Plot the DOS.
plotter.clear();
plotter.plot(dos);
plotter.save("figures/DOS.png");
//Calculate the local density of states (LDOS).
Property::LDOS ldos = propertyExtractor.calculateLDOS({
{_a_, _a_}
});
ldos = Smooth::gaussian(ldos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);

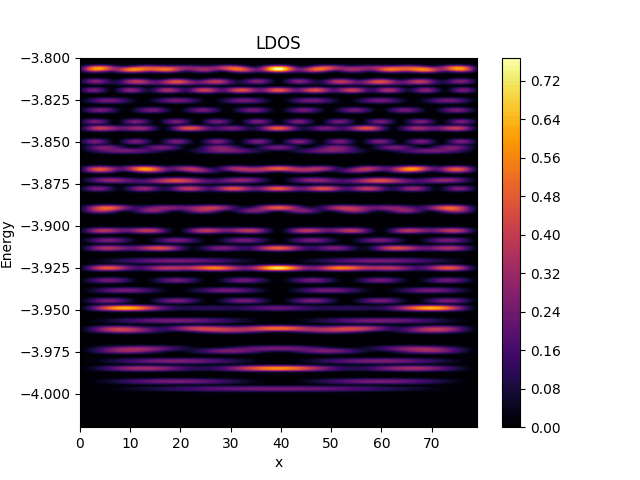

//Plot the LDOS.
plotter.clear();
plotter.setNumContours(100);
plotter.plot({_a_, SIZE_Y/2}, ldos);
plotter.save("figures/LDOS.png");
}

# Output
