Skyrmion

Hamiltonian

\(H = -\mu\sum_{\mathbf{i}\sigma}c_{\mathbf{i}\sigma}^{\dagger}c_{\mathbf{i}\sigma} + t\sum_{\langle\mathbf{i}\mathbf{j}\rangle\sigma}c_{\mathbf{i}\sigma}^{\dagger}c_{\mathbf{j}\sigma} + J\sum_{\mathbf{i}\sigma\sigma'}\left(\mathbf{S}(\mathbf{i})\cdot\boldsymbol{\sigma}\right)_{\sigma\sigma'}c_{\mathbf{i}\sigma}^{\dagger}c_{\mathbf{i}\sigma'}\)

Code

#include "TBTK/Property/Magnetization.h"
#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Solver/Diagonalizer.h"
#include "TBTK/TBTK.h"
#include "TBTK/Visualization/MatPlotLib/Plotter.h"

#include <complex>

using namespace std;
using namespace TBTK;
using namespace Visualization::MatPlotLib;

complex<double> i(0, 1);

//Callback that allows for the Zeeman term (J) to be updated after the Model
//has been set up.
class JCallback : public HoppingAmplitude::AmplitudeCallback{
public:
    //Function that returns the HoppingAmplitude value for the given
    //Indices. The to- and from-Indices are identical in this example.
    complex<double> getHoppingAmplitude(
        const Index &to,
        const Index &from
    ) const{
        Subindex x = from[0];
        Subindex y = from[1];
        Subindex toSpin = to[2];
        Subindex fromSpin = from[2];

        double X = x - sizeX/2.;
        double Y = y - sizeY/2.;
        double r = sqrt(X*X + Y*Y);
        double theta = atan2(Y, X);

        double S_X = sin(2*M_PI*r/radius)*cos(theta);
        double S_Y = sin(2*M_PI*r/radius)*sin(theta);
        double S_Z = cos(2*M_PI*r/radius);
        if(r > radius){
            S_X = 0;
            S_Y = 0;
            S_Z = 1;
        }

        if(toSpin == 0 && fromSpin == 0)
            return J*S_Z;
        else if(toSpin == 0 && fromSpin == 1)
            return J*(S_X - i*S_Y);
        else if(toSpin == 1 && fromSpin == 0)
            return J*(S_X + i*S_Y);
        else
            return -J*S_Z;
    }

    //Set the value for J.
    void setJ(double J){
        this->J = J;
    }

    void setSize(double sizeX, double sizeY){
        this->sizeX = sizeX;
        this->sizeY = sizeY;
    }

    //Set Skyrmion radius.
    void setSkyrmionRadius(double radius){
        this->radius = radius;
    }
private:
    double J;
    double sizeX;
    double sizeY;
    double radius;
};

int main(){
    //Initialize TBTK.
    Initialize();

    //Parameters.
    const unsigned int SIZE_X = 21;
    const unsigned int SIZE_Y = 21;
    const double t = -1;
    const double mu = 0;
    const double J = 1;
    const double SKYRMION_RADIUS = 10;

    //Create a callback that returns the Zeeman term and that will be used
    //as input to the Model.
    JCallback jCallback;
    jCallback.setJ(J);
    jCallback.setSize(SIZE_X, SIZE_Y);
    jCallback.setSkyrmionRadius(SKYRMION_RADIUS);

    //Set up the Model.
    Model model;
    for(unsigned int x = 0; x < SIZE_X; x++){
        for(unsigned int y = 0; y < SIZE_Y; y++){
            for(unsigned int spin = 0; spin < 2; spin++){
                for(unsigned int spin2 = 0; spin2 < 2; spin2++){
                    model << HoppingAmplitude(
                        jCallback,
                        {x, y, spin},
                        {x, y, spin2}
                    );
                }

                if(x+1 < SIZE_X){
                    model << HoppingAmplitude(
                        t,
                        {x+1, y, spin},
                        {x, y, spin}
                    ) + HC;
                }
                if(y+1 < SIZE_Y){
                    model << HoppingAmplitude(
                        t,
                        {x, y+1, spin},
                        {x, y, spin}
                    ) + HC;
                }
            }
        }
    }
    model.construct();
    model.setChemicalPotential(mu);

    //Set up the Solver.
    Solver::Diagonalizer solver;
    solver.setModel(model);
    solver.run();

    //Set up the PropertyExtractor.
    const double LOWER_BOUND = -8;
    const double UPPER_BOUND = 8;
    const unsigned int RESOLUTION = 1000;
    PropertyExtractor::Diagonalizer propertyExtractor(solver);
    propertyExtractor.setEnergyWindow(
        LOWER_BOUND,
        UPPER_BOUND,
        RESOLUTION
    );

    //Calculate the Magnetization.
    Property::Magnetization magnetization
        = propertyExtractor.calculateMagnetization(
            {{_a_, _a_, IDX_SPIN}}
        );

    Plotter plotter;
    plotter.setNumContours(20);

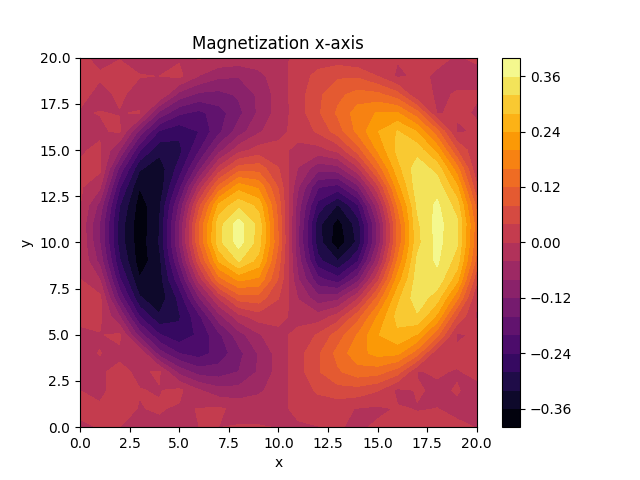

    plotter.setTitle("Magnetization x-axis");
    plotter.plot({_a_, _a_, IDX_SPIN}, {1, 0, 0}, magnetization);
    plotter.save("figures/MagnetizationX.png");
    plotter.clear();
    plotter.setNumContours(20);

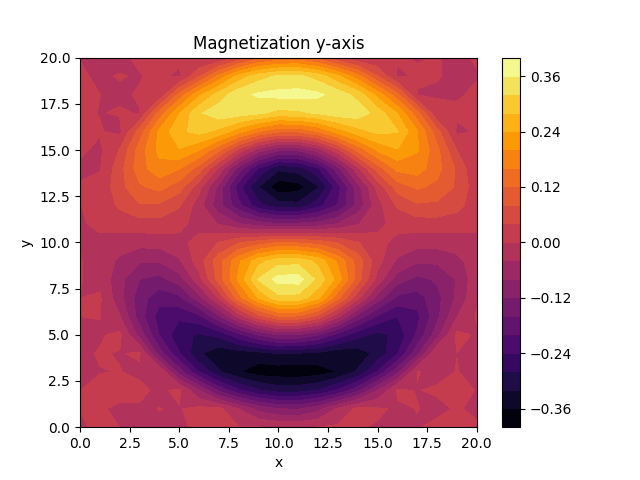

    plotter.setTitle("Magnetization y-axis");
    plotter.plot({_a_, _a_, IDX_SPIN}, {0, 1, 0}, magnetization);
    plotter.save("figures/MagnetizationY.png");
    plotter.clear();
    plotter.setNumContours(20);

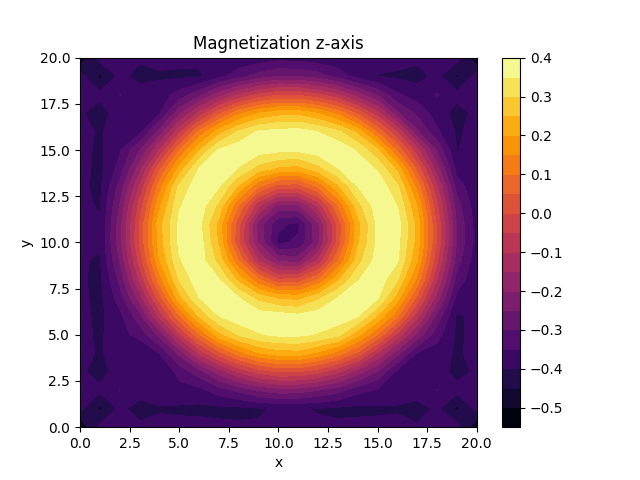

    plotter.setTitle("Magnetization z-axis");
    plotter.plot({_a_, _a_, IDX_SPIN}, {0, 0, 1}, magnetization);
    plotter.save("figures/MagnetizationZ.png");
}

Output
