Kitaev model

Hamiltonian

\(H = t\sum_{x}\left(c_{x+1}^{\dagger}c_{x} - c_{x+1}x_{x}^{\dagger}\right) + \frac{i}{10}\sum_{x}c_{x+1}c_{x} + H.c.\)

Code

#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Smooth.h"
#include "TBTK/Solver/Diagonalizer.h"
#include "TBTK/TBTK.h"
#include "TBTK/Visualization/MatPlotLib/Plotter.h"
#include <complex>
using namespace std;
using namespace TBTK;
using namespace Visualization::MatPlotLib;
complex<double> i(0, 1);
int main(){
//Initialize TBTK.
//Parameters.
const unsigned int SIZE = 400;
const double t = -1;
//Set up the Model.
Model model;
for(unsigned int x = 0; x < SIZE; x++){
model << HoppingAmplitude(t, {x+1, 0}, {x, 0}) + HC;
model << HoppingAmplitude(-t, {x+1, 1}, {x, 1}) + HC;
model << HoppingAmplitude(0.1*i, {x+1, 1}, {x, 0}) + HC;
}
model.construct();
//Set up the Solver.
solver.setModel(model);
solver.run();
//Set up the PropertyExtractor.
const double LOWER_BOUND = -2;
const double UPPER_BOUND = 2;
const unsigned int RESOLUTION = 1000;
PropertyExtractor::Diagonalizer propertyExtractor(solver);
propertyExtractor.setEnergyWindow(
LOWER_BOUND,
UPPER_BOUND,
RESOLUTION
);
//Calculate the local density of states (LDOS) for all x, summing over
//the Nambu space Subindex.
= propertyExtractor.calculateLDOS({{_a_, IDX_SUM_ALL}});
//Smooth the LDOS.
const double SMOOTHING_SIGMA = 0.02;
const unsigned int SMOOTHING_WINDOW = 51;
ldos = Smooth::gaussian(ldos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);
//Plot the LDOS.
Plotter plotter;
plotter.plot({_a_, IDX_SUM_ALL}, ldos);
plotter.save("figures/LDOS.png");
//Calculate the wavefunctions.
= propertyExtractor.calculateWaveFunctions(
{{_a_, _a_}},
{_a_}
);

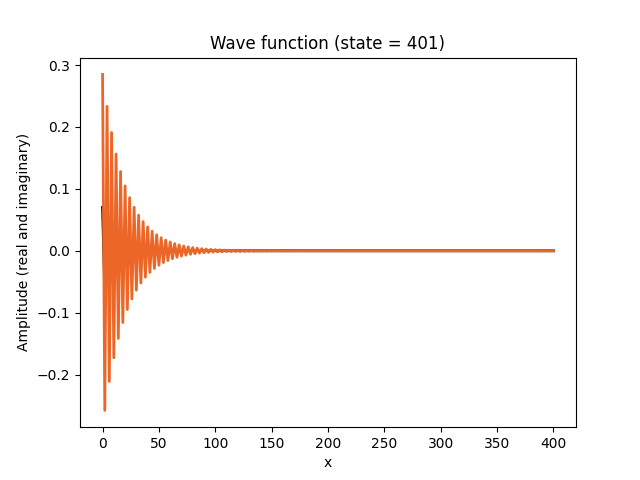

//Plot the electron component of the Majorana wavefunction at E=0 (in
//the middle of the energy spectrum).
plotter.clear();
plotter.plot({_a_, 0}, model.getBasisSize()/2, waveFunctions);
plotter.save("figures/WaveFunction.png");
}

Output
