Extracts physical properties from the Solver::Diagonalizer. More...

#include <Diagonalizer.h>

Inheritance diagram for TBTK::PropertyExtractor::Diagonalizer:

Public Member Functions
	Diagonalizer (Solver::Diagonalizer &solver)

Property::EigenValues	getEigenValues ()

double	getEigenValue (int state)

const std::complex< double >	getAmplitude (int state, const Index &index)

Property::WaveFunctions	calculateWaveFunctions (std::vector< Index > patterns, std::vector< Subindex > states)

Property::GreensFunction	calculateGreensFunction (const std::vector< Index > &patterns, Property::GreensFunction::Type type=Property::GreensFunction::Type::Retarded)

virtual Property::DOS	calculateDOS ()

virtual std::complex< double >	calculateExpectationValue (Index to, Index from)

virtual Property::Density	calculateDensity (Index pattern, Index ranges)

virtual Property::Density	calculateDensity (std::vector< Index > patterns)

virtual Property::Magnetization	calculateMagnetization (Index pattern, Index ranges)

virtual Property::Magnetization	calculateMagnetization (std::vector< Index > patterns)

virtual Property::LDOS	calculateLDOS (Index pattern, Index ranges)

virtual Property::LDOS	calculateLDOS (std::vector< Index > patterns)

virtual Property::SpinPolarizedLDOS	calculateSpinPolarizedLDOS (Index pattern, Index ranges)

virtual Property::SpinPolarizedLDOS	calculateSpinPolarizedLDOS (std::vector< Index > patterns)

virtual double	calculateEntropy ()

Public Member Functions inherited from TBTK::PropertyExtractor::PropertyExtractor
	PropertyExtractor ()

virtual	~PropertyExtractor ()

virtual void	setEnergyWindow (double lowerBound, double upperBound, int energyResolution)

virtual void	setEnergyWindow (int lowerFermionicMatsubaraEnergyIndex, int upperFermionicMatsubaraEnergyIndex, int lowerBosonicMatsubaraEnergyIndex, int upperBosonicMatsubaraEnergyIndex)

virtual void	setEnergyInfinitesimal (double energyInfinitesimal)

virtual Property::DOS	sampleDOS (unsigned int numSamples, const std::vector< Index > &patterns={}, unsigned int seed=time(nullptr))

Additional Inherited Members
Protected Types inherited from TBTK::PropertyExtractor::PropertyExtractor
enum	EnergyType { Real, Matsubara }

Protected Member Functions inherited from TBTK::PropertyExtractor::PropertyExtractor
EnergyType	getEnergyType () const

int	getEnergyResolution () const

double	getLowerBound () const

double	getUpperBound () const

int	getLowerFermionicMatsubaraEnergyIndex () const

int	getUpperFermionicMatsubaraEnergyIndex () const

int	getLowerBosonicMatsubaraEnergyIndex () const

int	getUpperBosonicMatsubaraEnergyIndex () const

double	getEnergyInfinitesimal () const

template<typename DataType >
void	calculate (void(callback)(PropertyExtractor cb_this, Property::Property &property, const Index &index, int offset, Information &information), Property::AbstractProperty< DataType > &property, Index pattern, const Index &ranges, int currentOffset, int offsetMultiplier, Information &information)

template<typename DataType >
void	calculate (void(callback)(PropertyExtractor cb_this, Property::Property &property, const Index &index, int offset, Information &information), const IndexTree &allIndices, const IndexTree &memoryLayout, Property::AbstractProperty< DataType > &abstractProperty, Information &information)

void	ensureCompliantRanges (const Index &pattern, Index &ranges)

std::vector< int >	getLoopRanges (const Index &pattern, const Index &ranges)

IndexTree	generateIndexTree (std::vector< Index > patterns, const HoppingAmplitudeSet &hoppingAmplitudeSet, bool keepSummationWildcards, bool keepSpinWildcards)

Detailed Description

Extracts physical properties from the Solver::Diagonalizer.

The PropertyExtractor::Diagonalizer extracts Properties from the Solver::Diagonalizer.

Example

#include "TBTK/Model.h"
#include "TBTK/Models/SquareLattice.h"
#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Smooth.h"
#include "TBTK/Solver/Diagonalizer.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
#include "TBTK/Visualization/MatPlotLib/Plotter.h"
using namespace TBTK;
using namespace Visualization::MatPlotLib;
int main(){
    Initialize();
    const int SIZE_X = 40;
    const int SIZE_Y = 40;
    double t = 1;
    Model model = Models::SquareLattice({SIZE_X, SIZE_Y}, {0, t});
    model.construct();
    Solver::Diagonalizer solver;
    solver.setModel(model);
    solver.run();
    const double LOWER_BOUND = -10;
    const double UPPER_BOUND = 10;
    const int RESOLUTION = 200;
    PropertyExtractor::Diagonalizer propertyExtractor(solver);
    propertyExtractor.setEnergyWindow(
        LOWER_BOUND,
        UPPER_BOUND,
        RESOLUTION
    );
    Plotter plotter;
    const double SMOOTHING_SIGMA = 0.2;
    const unsigned int SMOOTHING_WINDOW = 51;
    Property::DOS dos = propertyExtractor.calculateDOS();
    dos = Smooth::gaussian(dos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);
    Streams::out << dos << "\n";
    plotter.plot(dos);
    plotter.save("figures/DOS.png");
    Property::Density density = propertyExtractor.calculateDensity({
        {_a_, 0},   //All points of the form {x, 0}
        {20, _a_},  //All points of the form {20, y}
        {10, 10},
        {10, 11},
        {11, 10},
        {11, 11}
    });
    Streams::out << density << "\n";
    plotter.clear();
    plotter.plot({_a_, _a_}, density);
    plotter.save("figures/Density.png");
    Property::LDOS ldos = propertyExtractor.calculateLDOS({{_a_, 20}});
    ldos = Smooth::gaussian(ldos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);
    Streams::out << ldos << "\n";
    plotter.clear();
    plotter.plot({_a_, 20}, ldos);
    plotter.save("figures/LDOS.png");
}

Output

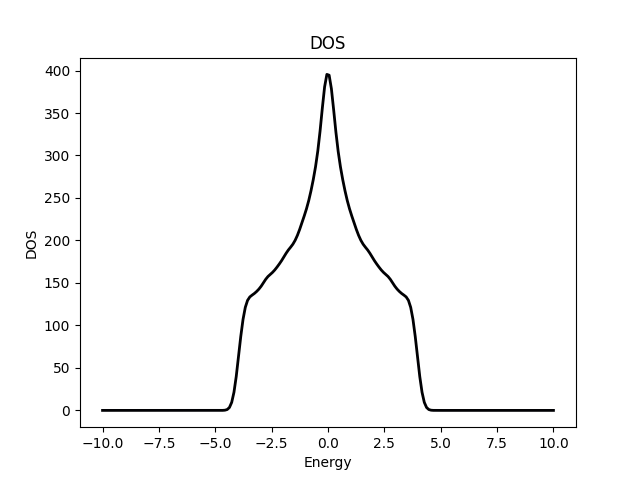

DOS
    Lower bound: -10 eV (-10 n.u.)
    Upper bound: 10 eV (10 n.u.)
    Resolution: 200

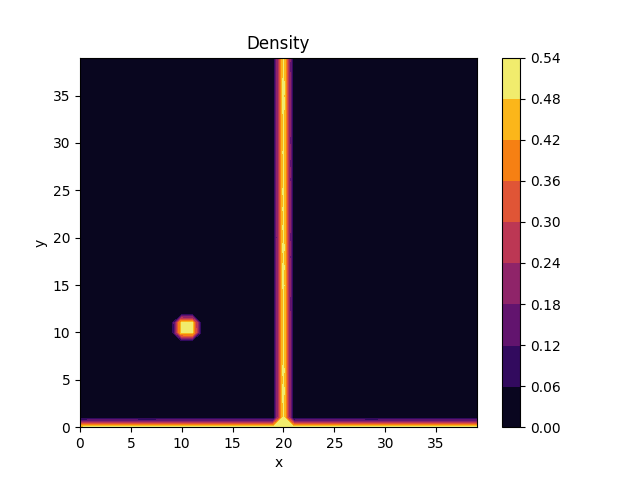

Density
    Number of sites: 83

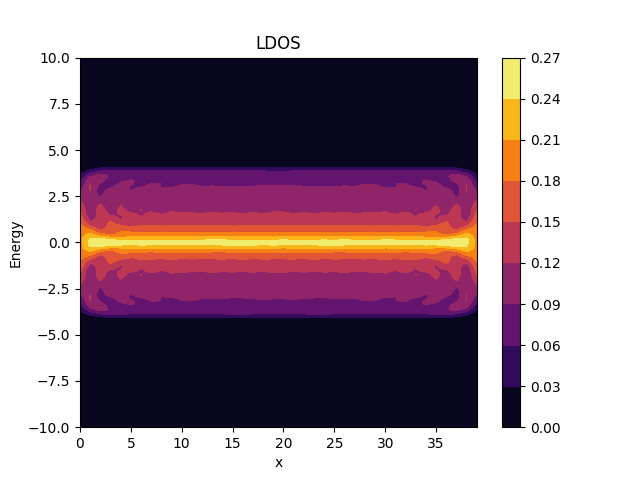

LDOS
    Number of sites: 40
    Lower bound: -10 eV (-10 n.u.)
    Upper bound: 10 eV (10 n.u.)
    Resolution: 200

Constructor & Destructor Documentation

◆ Diagonalizer()

TBTK::PropertyExtractor::Diagonalizer::Diagonalizer ( Solver::Diagonalizer & solver )

Constructs a PropertyExtractor::Diagonalizer.

Parameters

solver The Solver to use.

Member Function Documentation

◆ calculateDensity() [1/2]

virtual Property::Density TBTK::PropertyExtractor::Diagonalizer::calculateDensity	(	Index	pattern,
		Index	ranges
	)

virtual

Overrides PropertyExtractor::calculateDensity().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateDensity() [2/2]

virtual Property::Density TBTK::PropertyExtractor::Diagonalizer::calculateDensity ( std::vector< Index > patterns )

virtual

Overrides PropertyExtractor::calculateDensity().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateDOS()

virtual Property::DOS TBTK::PropertyExtractor::Diagonalizer::calculateDOS ( )

virtual

Overrides PropertyExtractor::calculateDOS().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateEntropy()

virtual double TBTK::PropertyExtractor::Diagonalizer::calculateEntropy ( )

virtual

Overrides PropertyExtractor::calculateEntropy().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateExpectationValue()

virtual std::complex<double> TBTK::PropertyExtractor::Diagonalizer::calculateExpectationValue	(	Index	to,
		Index	from
	)

virtual

Calculate expectation value.

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateGreensFunction()

Property::GreensFunction TBTK::PropertyExtractor::Diagonalizer::calculateGreensFunction	(	const std::vector< Index > &	patterns,
		Property::GreensFunction::Type	type = `Property::GreensFunction::Type::Retarded`
	)

Calculate Green's function. Calculate Green's function.

◆ calculateLDOS() [1/2]

virtual Property::LDOS TBTK::PropertyExtractor::Diagonalizer::calculateLDOS	(	Index	pattern,
		Index	ranges
	)

virtual

Overrides PropertyExtractor::calculateLDOS().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateLDOS() [2/2]

virtual Property::LDOS TBTK::PropertyExtractor::Diagonalizer::calculateLDOS ( std::vector< Index > patterns )

virtual

Overrides PropertyExtractor::calculateLDOS().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateMagnetization() [1/2]

virtual Property::Magnetization TBTK::PropertyExtractor::Diagonalizer::calculateMagnetization	(	Index	pattern,
		Index	ranges
	)

virtual

Overrides PropertyExtractor::calculateMagnetization().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateMagnetization() [2/2]

virtual Property::Magnetization TBTK::PropertyExtractor::Diagonalizer::calculateMagnetization ( std::vector< Index > patterns )

virtual

Overrides PropertyExtractor::calculateMagnetization().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateSpinPolarizedLDOS() [1/2]

virtual Property::SpinPolarizedLDOS TBTK::PropertyExtractor::Diagonalizer::calculateSpinPolarizedLDOS	(	Index	pattern,
		Index	ranges
	)

virtual

Overrides PropertyExtractor::calculateSpinPolarizedLDOS().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateSpinPolarizedLDOS() [2/2]

virtual Property::SpinPolarizedLDOS TBTK::PropertyExtractor::Diagonalizer::calculateSpinPolarizedLDOS ( std::vector< Index > patterns )

virtual

Overrides PropertyExtractor::calculateSpinPolarizedLDOS().

Reimplemented from TBTK::PropertyExtractor::PropertyExtractor.

◆ calculateWaveFunctions()

Property::WaveFunctions TBTK::PropertyExtractor::Diagonalizer::calculateWaveFunctions	(	std::vector< Index >	patterns,
		std::vector< Subindex >	states
	)

Calculate WaveFunction on the Custom format. [See AbstractProperty for detailed information about the Custom format. See PropertyExtractor for detailed information about the patterns argument.]

Parameters

pattern	The pattern to use.
states	The states to extract the wave functions for. Can be set to {IDX_ALL} to get all states.

Returns: A WaveFunctions object containing the wave functions values for the Indices that satisfies the given patterns and state numbers.

◆ getAmplitude()

const std::complex< double > TBTK::PropertyExtractor::Diagonalizer::getAmplitude	(	int	state,
		const Index &	index
	)

inline

Get amplitude for given eigenvector \(n\) and physical index \(x\): \(\Psi_{n}(x)\).

Parameters

state	Eigenstate number \(n\)
index	Physical index \(x\).

◆ getEigenValue()

double TBTK::PropertyExtractor::Diagonalizer::getEigenValue ( int state )

inline

Get a single eigenvalue.

Parameters

state The state (in accendingorder) to get the eigen value for.

◆ getEigenValues()

Property::EigenValues TBTK::PropertyExtractor::Diagonalizer::getEigenValues ( )

Get eigenvalues.

Returns: A Property::EigenValues containing all the eigen values in accending order.

The documentation for this class was generated from the following file:

/home/kristofer.bjornson/SecondQuantizationCom/TBTK/Lib/include/TBTK/PropertyExtractor/Diagonalizer.h
