Property container for wave function. More...

#include <WaveFunctions.h>

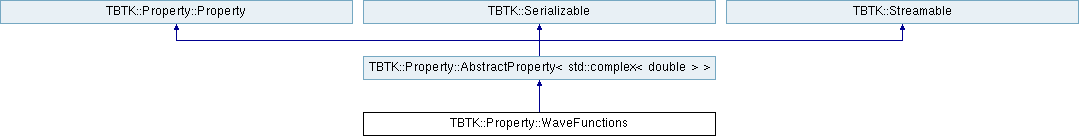

Inheritance diagram for TBTK::Property::WaveFunctions:

Public Member Functions
	WaveFunctions ()

	WaveFunctions (const IndexTree &indexTree, const std::vector< unsigned int > &states)

	WaveFunctions (const IndexTree &indexTree, const std::vector< unsigned int > &states, const std::complex< double > *data)

	WaveFunctions (const std::string &serialization, Mode mode)

const std::vector< unsigned int > &	getStates () const

const std::complex< double > &	operator() (const Index &index, unsigned int state) const

std::complex< double > &	operator() (const Index &index, unsigned int state)

double	getMinAbs () const

double	getMaxAbs () const

double	getMinArg () const

double	getMaxArg () const

virtual std::string	toString () const

virtual std::string	serialize (Mode mode) const

Public Member Functions inherited from TBTK::Property::AbstractProperty< std::complex< double > >
unsigned int	getBlockSize () const

unsigned int	getSize () const

const std::vector< std::complex< double > > &	getData () const

std::vector< std::complex< double > > &	getDataRW ()

unsigned int	getDimensions () const

std::vector< int >	getRanges () const

int	getOffset (const Index &index) const

const IndexDescriptor &	getIndexDescriptor () const

bool	contains (const Index &index) const

void	reduce (const std::vector< Index > &targetPatterns, const std::vector< Index > &newPatterns)

void	hermitianConjugate ()

std::vector< SparseMatrix< std::complex< double > > >	toSparseMatrices (const Model &model) const

std::complex< double > &	operator() (const std::initializer_list< Subindex > &index)

const std::complex< double > &	operator() (const std::initializer_list< Subindex > &index) const

virtual const std::complex< double > &	operator() (unsigned int offset) const

virtual std::complex< double > &	operator() (unsigned int offset)

void	setAllowIndexOutOfBoundsAccess (bool allowIndexOutOfBoundsAccess)

void	setDefaultValue (const std::complex< double > &defaultValue)

void	replaceValues (const std::complex< double > &targetValue, const std::complex< double > &replacementValue)

Public Member Functions inherited from TBTK::Serializable
template<>
std::string	serialize (const bool &data, Mode mode)

template<>
std::string	serialize (const double &data, Mode mode)

template<>
std::string	serialize (const std::complex< double > &data, Mode mode)

template<>
std::string	serialize (const int &data, Mode mode)

template<>
std::string	serialize (const unsigned int &data, Mode mode)

template<>
std::string	serialize (const SpinMatrix &data, Mode mode)

template<>
std::string	serialize (const Statistics &data, Mode mode)

template<>
std::string	serialize (const std::vector< std::complex< double >> &data, Mode mode)

template<>
int	deserialize (const std::string &serialization, Mode mode)

template<>
unsigned int	deserialize (const std::string &serialization, Mode mode)

template<>
double	deserialize (const std::string &serialization, Mode mode)

template<>
std::complex< double >	deserialize (const std::string &serialization, Mode mode)

template<>
SpinMatrix	deserialize (const std::string &serialization, Mode mode)

template<>
Statistics	deserialize (const std::string &serialization, Mode mode)

template<>
std::vector< std::complex< double > >	deserialize (const std::string &serialization, Mode mode)

Additional Inherited Members
Public Types inherited from TBTK::Serializable
enum	Mode { Debug, Binary, XML, JSON }

Static Public Member Functions inherited from TBTK::Serializable
static bool	hasID (const std::string &serialization, Mode mode)

static std::string	getID (const std::string &serialization, Mode mode)

static std::string	extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)

Protected Member Functions inherited from TBTK::Property::AbstractProperty< std::complex< double > >
	AbstractProperty ()

	AbstractProperty (unsigned int blockSize)

	AbstractProperty (unsigned int blockSize, const std::complex< double > *data)

	AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize)

	AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize, const std::complex< double > *data)

	AbstractProperty (const IndexTree &indexTree, unsigned int blockSize)

	AbstractProperty (const IndexTree &indexTree, unsigned int blockSize, const std::complex< double > *data)

	AbstractProperty (const AbstractProperty &abstractProperty)

	AbstractProperty (AbstractProperty &&abstractProperty)

	AbstractProperty (const std::string &serialization, Mode mode)

virtual	~AbstractProperty ()

AbstractProperty &	operator= (const AbstractProperty &abstractProperty)

AbstractProperty &	operator= (AbstractProperty &&abstractProperty)

AbstractProperty &	operator+= (const AbstractProperty &rhs)

AbstractProperty &	operator-= (const AbstractProperty &rhs)

AbstractProperty &	operator*= (const std::complex< double > &rhs)

AbstractProperty &	operator/= (const std::complex< double > &rhs)

Protected Member Functions inherited from TBTK::Property::Property
	Property ()

virtual	~Property ()

Static Protected Member Functions inherited from TBTK::Serializable
static bool	validate (const std::string &serialization, const std::string &id, Mode mode)

static std::string	getContent (const std::string &serialization, Mode mode)

static std::vector< std::string >	split (const std::string &content, Mode mode)

template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)

template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)

template<typename DataType >
static DataType	deserialize (const std::string &serialization, Mode mode)

static std::string	extract (const std::string &serialization, Mode mode, std::string component)

Detailed Description

Property container for wave function.

The WaveFunctions is a Property with DataType std::complex<double>. It contains the wave function for a number of states.

Example

#include "TBTK/Models/SquareLattice.h"
#include "TBTK/Property/WaveFunctions.h"
#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Solver/Diagonalizer.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
#include "TBTK/Visualization/MatPlotLib/Plotter.h"
using namespace TBTK;
using namespace Visualization::MatPlotLib;
int main(){
    Initialize();
    const unsigned int SIZE_X = 41;
    const unsigned int SIZE_Y = 41;
    double t = 1;
    Model model = Models::SquareLattice({SIZE_X, SIZE_Y}, {0, -t});
    model.construct();
    Solver::Diagonalizer solver;
    solver.setModel(model);
    solver.run();
    PropertyExtractor::Diagonalizer propertyExtractor(solver);
    Property::WaveFunctions waveFunctions
        = propertyExtractor.calculateWaveFunctions(
            {{_a_, _a_}},
            {_a_}
        );
    Streams::out << "waveFunctions({20, 20}, 100) = "
        << waveFunctions({20, 20}, 100) << "\n";
    const unsigned int STATE = 4;
    Plotter plotter;

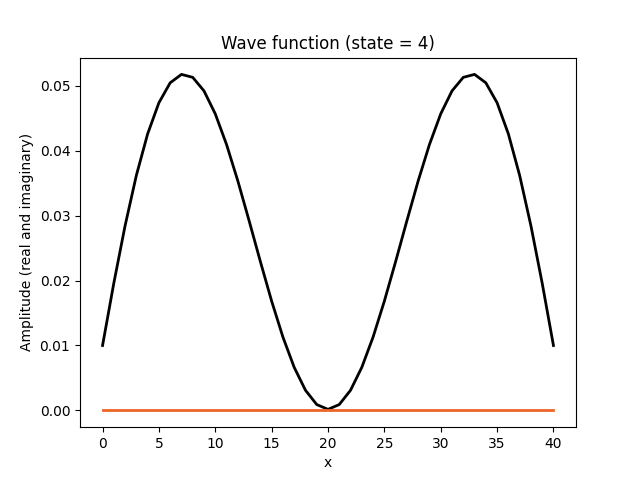

    plotter.plot({_a_, 20}, STATE, waveFunctions);
    plotter.save("figures/WaveFunction1D.png");
    plotter.clear();

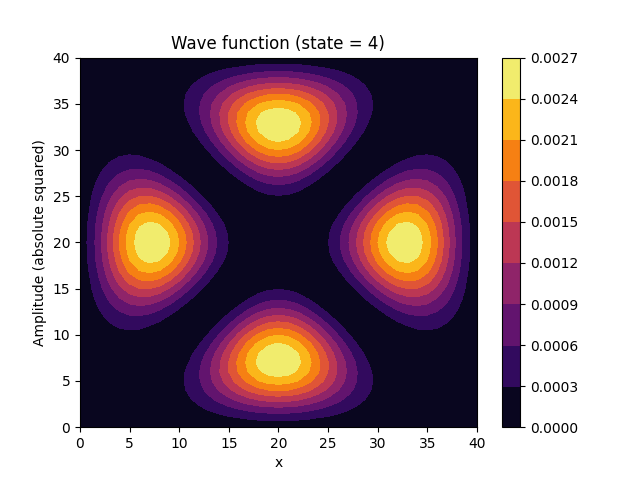

    plotter.plot({_a_, _a_}, STATE, waveFunctions);
    plotter.save("figures/WaveFunction2D.png");
}

Output

waveFunctions({20, 20}, 100) = (1.42061e-15,0)

Constructor & Destructor Documentation

◆ WaveFunctions() [1/4]

TBTK::Property::WaveFunctions::WaveFunctions ( )

inline

Constructs an uninitialized WaveFunctions.

◆ WaveFunctions() [2/4]

TBTK::Property::WaveFunctions::WaveFunctions	(	const IndexTree &	indexTree,
		const std::vector< unsigned int > &	states
	)

Constructs WaveFunctions on the Custom format. [See AbstractProperty for detailed information about the Custom format.]

Parameters

indexTree	IndexTree containing the Indices for which the WaveFunctions should be constructed.
states	A list of the states for which the correspinding wavefunctions should be contained.

◆ WaveFunctions() [3/4]

TBTK::Property::WaveFunctions::WaveFunctions	(	const IndexTree &	indexTree,
		const std::vector< unsigned int > &	states,
		const std::complex< double > *	data
	)

Constructs WaveFunctions on the Custom format and initializes it with data. [See AbstractProperty for detailed information about the Custom format and the raw data format.]

Parameters

indexTree	IndexTree containing the Indices for which the WaveFunctions should be constructed.
states	A list of the states for which the correspinding wavefunctions should be contained.
data	Raw data to initialize the WaveFunctions with.

◆ WaveFunctions() [4/4]

TBTK::Property::WaveFunctions::WaveFunctions	(	const std::string &	serialization,
		Mode	mode
	)

Constructor. Constructs the WaveFunctions from a serialization string.

Parameters

serialization Serialization string from which to construct the WaveFunctions.

Member Function Documentation

◆ getMaxAbs()

double TBTK::Property::WaveFunctions::getMaxAbs ( ) const

Get the maximum absolute value.

Returns: The maximum absolute value.

◆ getMaxArg()

double TBTK::Property::WaveFunctions::getMaxArg ( ) const

Get the maximum argument value.

Returns: The maximum argument value.

◆ getMinAbs()

double TBTK::Property::WaveFunctions::getMinAbs ( ) const

Get the minimum absolute value.

Returns: The minimum absolute value.

◆ getMinArg()

double TBTK::Property::WaveFunctions::getMinArg ( ) const

Get the minimum argument value.

Returns: The minimum argument value.

◆ getStates()

const std::vector< unsigned int > & TBTK::Property::WaveFunctions::getStates ( ) const

inline

Get the contained states.

*

Returns: A vector with the state indices for which the wave function is contained.

◆ operator()() [1/2]

const std::complex<double>& TBTK::Property::WaveFunctions::operator()	(	const Index &	index,
		unsigned int	state
	)		const

virtual

Overrides AbstractProperty::operator().

Reimplemented from TBTK::Property::AbstractProperty< std::complex< double > >.

◆ operator()() [2/2]

std::complex<double>& TBTK::Property::WaveFunctions::operator()	(	const Index &	index,
		unsigned int	state
	)

virtual

Overrides AbstractProperty::operator().

Reimplemented from TBTK::Property::AbstractProperty< std::complex< double > >.

◆ serialize()

virtual std::string TBTK::Property::WaveFunctions::serialize ( Mode mode ) const

virtual

Overrides AbstractProperty::serialize().

Reimplemented from TBTK::Property::AbstractProperty< std::complex< double > >.

◆ toString()

virtual std::string TBTK::Property::WaveFunctions::toString ( ) const

virtual

Overrides Streamable::toString().

Reimplemented from TBTK::Property::AbstractProperty< std::complex< double > >.

The documentation for this class was generated from the following file:

/home/kristofer.bjornson/SecondQuantizationCom/TBTK/Lib/include/TBTK/Property/WaveFunctions.h
