TBTK::Property::Magnetization Class Reference

Property container for magnetization. More...

#include <Magnetization.h>

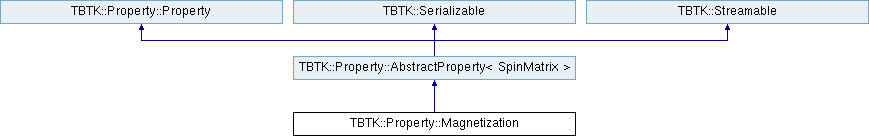

Inheritance diagram for TBTK::Property::Magnetization:
TBTK::Property::AbstractProperty< SpinMatrix > TBTK::Property::Property TBTK::Serializable TBTK::Streamable

Public Member Functions

 Magnetization (const std::vector< int > &ranges)

 Magnetization (const std::vector< int > &ranges, const SpinMatrix *data)

 Magnetization (const IndexTree &indexTree)

 Magnetization (const IndexTree &indexTree, const SpinMatrix *data)

 Magnetization (const std::string &serialization, Mode mode)

std::string serialize (Mode mode) const

- Public Member Functions inherited from TBTK::Property::AbstractProperty< SpinMatrix >
unsigned int getBlockSize () const

unsigned int getSize () const

const std::vector< SpinMatrix > & getData () const

std::vector< SpinMatrix > & getDataRW ()

unsigned int getDimensions () const

std::vector< int > getRanges () const

int getOffset (const Index &index) const

const IndexDescriptorgetIndexDescriptor () const

bool contains (const Index &index) const

void reduce (const std::vector< Index > &targetPatterns, const std::vector< Index > &newPatterns)

void hermitianConjugate ()

std::vector< SparseMatrix< SpinMatrix > > toSparseMatrices (const Model &model) const

virtual const SpinMatrixoperator() (const Index &index, unsigned int offset=0) const

virtual SpinMatrixoperator() (const Index &index, unsigned int offset=0)

SpinMatrixoperator() (const std::initializer_list< Subindex > &index)

const SpinMatrixoperator() (const std::initializer_list< Subindex > &index) const

virtual const SpinMatrixoperator() (unsigned int offset) const

virtual SpinMatrixoperator() (unsigned int offset)

void setAllowIndexOutOfBoundsAccess (bool allowIndexOutOfBoundsAccess)

void setDefaultValue (const SpinMatrix &defaultValue)

void replaceValues (const SpinMatrix &targetValue, const SpinMatrix &replacementValue)

virtual std::string toString () const

- Public Member Functions inherited from TBTK::Serializable
template<>
std::string serialize (const bool &data, Mode mode)

template<>
std::string serialize (const double &data, Mode mode)

template<>
std::string serialize (const std::complex< double > &data, Mode mode)

template<>
std::string serialize (const int &data, Mode mode)

template<>
std::string serialize (const unsigned int &data, Mode mode)

template<>
std::string serialize (const SpinMatrix &data, Mode mode)

template<>
std::string serialize (const Statistics &data, Mode mode)

template<>
std::string serialize (const std::vector< std::complex< double >> &data, Mode mode)

template<>
int deserialize (const std::string &serialization, Mode mode)

- Public Member Functions inherited from TBTK::Streamable
virtual std::string toString () const =0


Additional Inherited Members

- Public Types inherited from TBTK::Serializable
enum  Mode { Debug, Binary, XML, JSON }

- Static Public Member Functions inherited from TBTK::Serializable
static bool hasID (const std::string &serialization, Mode mode)

static std::string getID (const std::string &serialization, Mode mode)

static std::string extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)

- Protected Member Functions inherited from TBTK::Property::AbstractProperty< SpinMatrix >
 AbstractProperty ()

 AbstractProperty (unsigned int blockSize)

 AbstractProperty (unsigned int blockSize, const SpinMatrix *data)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize, const SpinMatrix *data)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize, const SpinMatrix *data)

 AbstractProperty (const AbstractProperty &abstractProperty)

 AbstractProperty (AbstractProperty &&abstractProperty)

 AbstractProperty (const std::string &serialization, Mode mode)

virtual ~AbstractProperty ()

AbstractPropertyoperator= (const AbstractProperty &abstractProperty)

AbstractPropertyoperator= (AbstractProperty &&abstractProperty)

AbstractPropertyoperator+= (const AbstractProperty &rhs)

AbstractPropertyoperator-= (const AbstractProperty &rhs)

AbstractPropertyoperator*= (const SpinMatrix &rhs)

AbstractPropertyoperator/= (const SpinMatrix &rhs)

- Protected Member Functions inherited from TBTK::Property::Property
 Property ()

virtual ~Property ()

- Static Protected Member Functions inherited from TBTK::Serializable
static bool validate (const std::string &serialization, const std::string &id, Mode mode)

static std::string getContent (const std::string &serialization, Mode mode)

static std::vector< std::string > split (const std::string &content, Mode mode)

template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static DataType deserialize (const std::string &serialization, Mode mode)

static std::string extract (const std::string &serialization, Mode mode, std::string component)


Detailed Description

Property container for magnetization.

The Magnetization is a Property with DataType SpinMatrix.

Example

#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
using namespace TBTK;
using namespace Visualization::MatPlotLib;
int main(){
const unsigned int SIZE_X = 11;
const unsigned int SIZE_Y = 11;
double t = 1;
double J = 1;
Model model
= Models::SquareLattice({SIZE_X, SIZE_Y, IDX_SPIN}, {0, t});
model << HoppingAmplitude(
J,
{SIZE_X/2, SIZE_Y/2, 0},
{SIZE_X/2, SIZE_Y/2, 0}
);
model << HoppingAmplitude(
-J,
{SIZE_X/2, SIZE_Y/2, 1},
{SIZE_X/2, SIZE_Y/2, 1}
);
model.construct();
solver.setModel(model);
solver.run();
PropertyExtractor::Diagonalizer propertyExtractor(solver);
= propertyExtractor.calculateMagnetization({
{_a_, _a_, IDX_SPIN}
});
Streams::out << "magnetization({5, 5, IDX_SPIN}) = "
<< magnetization({5, 5, IDX_SPIN}) << "\n";
Plotter plotter;

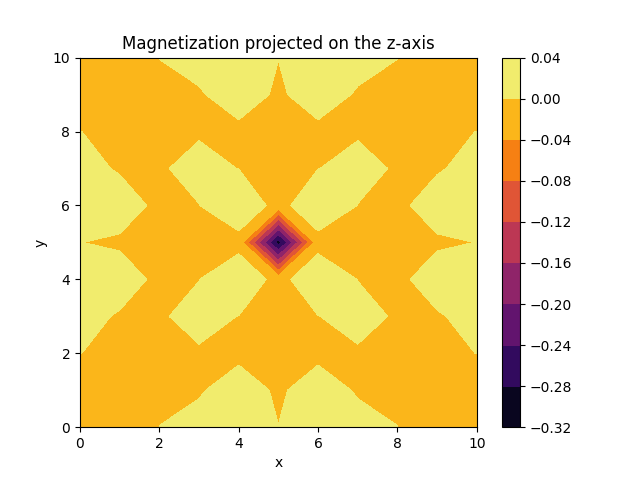

plotter.setTitle("Magnetization projected on the z-axis");
plotter.plot({_a_, _a_, IDX_SPIN}, {0, 0, 1}, magnetization);
plotter.save("figures/MagnetizationZ.png");
}

Output

magnetization({5, 5, IDX_SPIN}) = SpinMatrix
(0.0930429,0) (-4.07175e-17,0)
(-4.07175e-17,0) (0.394725,0)

Constructor & Destructor Documentation

◆ Magnetization() [1/5]

TBTK::Property::Magnetization::Magnetization ( const std::vector< int > &  ranges)

Constructs Magnetization on the Ranges format. [See AbstractProperty for detailed information about the Ranges format.]

Parameters
rangesThe upper limit (exclusive) for the corresponding dimensions.

◆ Magnetization() [2/5]

TBTK::Property::Magnetization::Magnetization ( const std::vector< int > &  ranges,
const SpinMatrix data
)

Constructs Magnetization on the Ranges format and initializes it with data. [See AbstractProperty for detailed information about the Ranges format and the raw data format.]

Parameters
rangesThe upper limit (exclusive) for the corresponding dimensions.
dataRaw data to initialize the Magnetization with.

◆ Magnetization() [3/5]

TBTK::Property::Magnetization::Magnetization ( const IndexTree indexTree)

Constructs Magnetization on the Custom format. [See AbstractProperty for detailed information about the Custom format.]

Parameters
indexTreeIndexTree containing the Indeices for which the Magnetization should be contained.

◆ Magnetization() [4/5]

TBTK::Property::Magnetization::Magnetization ( const IndexTree indexTree,
const SpinMatrix data
)

Constructs Magnetization on the Custom format and initializes it with data. [See AbstractProperty for detailed information about the Custom format and the raw data format.]

Parameters
indexTreeIndexTree containing the Indeices for which the Magnetization should be contained.
dataRaw data to initialize the Magnetization with.

◆ Magnetization() [5/5]

TBTK::Property::Magnetization::Magnetization ( const std::string &  serialization,
Mode  mode
)

Constructor. Constructs the Magnetization from a serialization string.

Parameters
serializationSerialization string from which to construct the Magnetization.
modeMode with which the string has been serialized.

Member Function Documentation

◆ serialize()

std::string TBTK::Property::Magnetization::serialize ( Mode  mode) const
virtual
