TBTK::Property::DOS Class Reference

Property container for density of states (DOS). More...

#include <DOS.h>

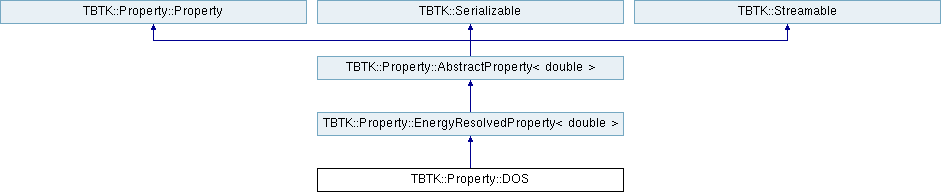

Inheritance diagram for TBTK::Property::DOS:
TBTK::Property::EnergyResolvedProperty< double > TBTK::Property::AbstractProperty< double > TBTK::Property::Property TBTK::Serializable TBTK::Streamable

Public Member Functions

 DOS ()

 DOS (double lowerBound, double upperBound, int resolution)

 DOS (double lowerBound, double upperBound, int resolution, const double *data)

 DOS (const std::string &serialization, Mode mode)

DOSoperator+= (const DOS &rhs)

DOS operator+ (const DOS &rhs) const

DOSoperator-= (const DOS &rhs)

DOS operator- (const DOS &rhs) const

DOSoperator*= (const double &rhs)

DOS operator* (const double &rhs) const

DOSoperator/= (const double &rhs)

DOS operator/ (const double &rhs) const

virtual std::string toString () const

virtual std::string serialize (Mode mode) const

- Public Member Functions inherited from TBTK::Property::EnergyResolvedProperty< double >
 EnergyResolvedProperty ()

 EnergyResolvedProperty (double lowerBound, double upperBound, unsigned int resolution)

 EnergyResolvedProperty (double lowerBound, double upperBound, unsigned int resolution, const double *data)

 EnergyResolvedProperty (const std::vector< int > &ranges, double lowerBound, double upperBound, unsigned int resolution)

 EnergyResolvedProperty (const std::vector< int > &ranges, double lowerBound, double upperBound, unsigned int resolution, const double *data)

 EnergyResolvedProperty (const IndexTree &indexTree, double lowerBound, double upperBound, unsigned int resolution)

 EnergyResolvedProperty (const IndexTree &indexTree, double lowerBound, double upperBound, unsigned int resolution, const double *data)

 EnergyResolvedProperty (EnergyType energyType, const IndexTree &indexTree, int lowerMatsubaraEnergyIndex, int upperMatsubaraEnergtIndex, double fundamentalMatsubaraEnergy)

 EnergyResolvedProperty (EnergyType energyType, const IndexTree &indexTree, int lowerMatsubaraEnergyIndex, int upperMatsubaraEnergtIndex, double fundamentalMatsubaraEnergy, const double *data)

 EnergyResolvedProperty (const std::string &serialization, Serializable::Mode mode)

EnergyType getEnergyType () const

double getLowerBound () const

double getUpperBound () const

unsigned int getResolution () const

double getDeltaE () const

double getEnergy (unsigned int n) const

int getLowerMatsubaraEnergyIndex () const

int getUpperMatsubaraEnergyIndex () const

unsigned int getNumMatsubaraEnergies () const

double getFundamentalMatsubaraEnergy () const

double getLowerMatsubaraEnergy () const

double getUpperMatsubaraEnergy () const

std::complex< double > getMatsubaraEnergy (unsigned int n) const

unsigned int getNumEnergies () const

bool energyWindowsAreEqual (const EnergyResolvedProperty &energyResolvedProperty, double precision=1e-1) const

- Public Member Functions inherited from TBTK::Property::AbstractProperty< double >
unsigned int getBlockSize () const

unsigned int getSize () const

const std::vector< double > & getData () const

std::vector< double > & getDataRW ()

unsigned int getDimensions () const

std::vector< int > getRanges () const

int getOffset (const Index &index) const

const IndexDescriptorgetIndexDescriptor () const

bool contains (const Index &index) const

void reduce (const std::vector< Index > &targetPatterns, const std::vector< Index > &newPatterns)

void hermitianConjugate ()

std::vector< SparseMatrix< double > > toSparseMatrices (const Model &model) const

virtual const double & operator() (const Index &index, unsigned int offset=0) const

virtual double & operator() (const Index &index, unsigned int offset=0)

double & operator() (const std::initializer_list< Subindex > &index)

const double & operator() (const std::initializer_list< Subindex > &index) const

virtual const double & operator() (unsigned int offset) const

virtual double & operator() (unsigned int offset)

void setAllowIndexOutOfBoundsAccess (bool allowIndexOutOfBoundsAccess)

void setDefaultValue (const double &defaultValue)

void replaceValues (const double &targetValue, const double &replacementValue)

virtual std::string toString () const

- Public Member Functions inherited from TBTK::Serializable
template<>
std::string serialize (const bool &data, Mode mode)

template<>
std::string serialize (const double &data, Mode mode)

template<>
std::string serialize (const std::complex< double > &data, Mode mode)

template<>
std::string serialize (const int &data, Mode mode)

template<>
std::string serialize (const unsigned int &data, Mode mode)

template<>
std::string serialize (const SpinMatrix &data, Mode mode)

template<>
std::string serialize (const Statistics &data, Mode mode)

template<>
std::string serialize (const std::vector< std::complex< double >> &data, Mode mode)

template<>
int deserialize (const std::string &serialization, Mode mode)


Friends

DOS operator* (const double &lhs, const DOS &rhs)


Additional Inherited Members

- Public Types inherited from TBTK::Property::EnergyResolvedProperty< double >
enum  EnergyType

- Public Types inherited from TBTK::Serializable
enum  Mode { Debug, Binary, XML, JSON }

- Static Public Member Functions inherited from TBTK::Serializable
static bool hasID (const std::string &serialization, Mode mode)

static std::string getID (const std::string &serialization, Mode mode)

static std::string extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)

- Protected Member Functions inherited from TBTK::Property::EnergyResolvedProperty< double >
EnergyResolvedPropertyoperator+= (const EnergyResolvedProperty &rhs)

EnergyResolvedPropertyoperator-= (const EnergyResolvedProperty &rhs)

EnergyResolvedPropertyoperator*= (const double &rhs)

EnergyResolvedPropertyoperator/= (const double &rhs)

- Protected Member Functions inherited from TBTK::Property::AbstractProperty< double >
 AbstractProperty ()

 AbstractProperty (unsigned int blockSize)

 AbstractProperty (unsigned int blockSize, const double *data)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize, const double *data)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize, const double *data)

 AbstractProperty (const AbstractProperty &abstractProperty)

 AbstractProperty (AbstractProperty &&abstractProperty)

 AbstractProperty (const std::string &serialization, Mode mode)

virtual ~AbstractProperty ()

AbstractPropertyoperator= (const AbstractProperty &abstractProperty)

AbstractPropertyoperator= (AbstractProperty &&abstractProperty)

AbstractPropertyoperator+= (const AbstractProperty &rhs)

AbstractPropertyoperator-= (const AbstractProperty &rhs)

AbstractPropertyoperator*= (const double &rhs)

AbstractPropertyoperator/= (const double &rhs)

- Protected Member Functions inherited from TBTK::Property::Property
 Property ()

virtual ~Property ()

- Static Protected Member Functions inherited from TBTK::Serializable
static bool validate (const std::string &serialization, const std::string &id, Mode mode)

static std::string getContent (const std::string &serialization, Mode mode)

static std::vector< std::string > split (const std::string &content, Mode mode)

template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static DataType deserialize (const std::string &serialization, Mode mode)

static std::string extract (const std::string &serialization, Mode mode, std::string component)


Detailed Description

Property container for density of states (DOS).

The DOS is an EnergyResolvedProperty with DataType double.

Conventions

DOS extracted by native PropertyExtractors satisfies the following convention.

  • The DOS is normalized such that, if it covers the full energy range, it integrates to the Model's basis size. \(\sum_{n}DOS(n)\Delta E\) = basis size.

Example

#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Smooth.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
using namespace TBTK;
using namespace Visualization::MatPlotLib;
int main(){
const unsigned int SIZE_X = 40;
const unsigned int SIZE_Y = 40;
double t = 1;
Model model = Models::SquareLattice({SIZE_X, SIZE_Y}, {0, t});
model.construct();
solver.setModel(model);
solver.run();
const double LOWER_BOUND = -5;
const double UPPER_BOUND = 5;
const unsigned int RESOLUTION = 200;
PropertyExtractor::Diagonalizer propertyExtractor(solver);
propertyExtractor.setEnergyWindow(
LOWER_BOUND,
UPPER_BOUND,
RESOLUTION
);
Property::DOS dos = propertyExtractor.calculateDOS();
Streams::out << dos << "\n";
Streams::out << "dos(50) = " << dos(50) << "\n";
double integratedDOS = 0;
double dE = dos.getDeltaE();
for(unsigned int n = 0; n < dos.getResolution(); n++)
integratedDOS += dos(n)*dE;
Streams::out << "Integrated DOS: " << integratedDOS << "\n";
const double SMOOTHING_SIGMA = 0.2;
const unsigned int SMOOTHING_WINDOW = 51;
dos = Smooth::gaussian(dos, SMOOTHING_SIGMA, SMOOTHING_WINDOW);

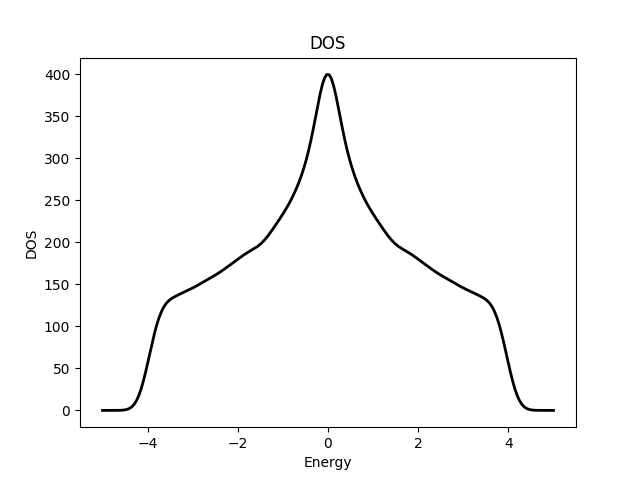

Plotter plotter;
plotter.plot(dos);
plotter.save("figures/DOS.png");
}

Output

Lower bound: -5 eV (-5 n.u.)
Upper bound: 5 eV (5 n.u.)
Resolution: 200
dos(50) = 159.2
Integrated DOS: 1600

Constructor & Destructor Documentation

◆ DOS() [1/4]

TBTK::Property::DOS::DOS ( )
inline

Constructs an uninitialized DOS.

◆ DOS() [2/4]

TBTK::Property::DOS::DOS ( double  lowerBound,
double  upperBound,
int  resolution
)

Constructs a Density.

Parameters
lowerBoundLower bound for the energy.
upperBoundUpper bound for the energy.
resolutionNumber of points to us for the energy.

◆ DOS() [3/4]

TBTK::Property::DOS::DOS ( double  lowerBound,
double  upperBound,
int  resolution,
const double *  data
)

Constructs a Density and initializes it with data.

Parameters
lowerBoundLower bound for the energy.
upperBoundUpper bound for the energy.
resolutionNumber of points to us for the energy.
dataRaw data to initialize the DOS with.

◆ DOS() [4/4]

TBTK::Property::DOS::DOS ( const std::string &  serialization,
Mode  mode
)

Constructor. Constructs the DOS from a serialization string.

Parameters
serializationSerialization string from which to construct the DOS.
modeMode with which the string has been serialized.

Member Function Documentation

◆ operator*()

DOS TBTK::Property::DOS::operator* ( const double &  rhs) const
inline

Multiplication operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new DOS that is the product of the DOS and the right hand side.

◆ operator*=()

DOS & TBTK::Property::DOS::operator*= ( const double &  rhs)
inline

◆ operator+()

DOS TBTK::Property::DOS::operator+ ( const DOS rhs) const
inline

Addition operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new DOS that is the sum of this DOS and the right hand side.

◆ operator+=()

DOS & TBTK::Property::DOS::operator+= ( const DOS rhs)
inline

◆ operator-()

DOS TBTK::Property::DOS::operator- ( const DOS rhs) const
inline

Subtraction operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new DOS that is the difference between this DOS and the right hand side.

◆ operator-=()

DOS & TBTK::Property::DOS::operator-= ( const DOS rhs)
inline

◆ operator/()

DOS TBTK::Property::DOS::operator/ ( const double &  rhs) const
inline

Division operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new DOS that is the quotient the DOS and the right hand side.

◆ operator/=()

DOS & TBTK::Property::DOS::operator/= ( const double &  rhs)
inline

◆ serialize()

virtual std::string TBTK::Property::DOS::serialize ( Mode  mode) const
virtual

◆ toString()

virtual std::string TBTK::Property::DOS::toString ( ) const
virtual

Implements Streamable::toString().

Implements TBTK::Streamable.

Friends And Related Function Documentation

◆ operator*

DOS operator* ( const double &  lhs,
const DOS rhs
)
friend

Multiplication operator.

Parameters
lhsThe left hand side of the equation.
rhsThe right hand side of the equation.
Returns
A new DOS that is the product of the left hand side and the DOS.

The documentation for this class was generated from the following file:
Plotter.h
Plots data.
TBTK::Model
Container of Model related information.
Definition: Model.h:57
TBTK::Property::DOS
Property container for density of states (DOS).
Definition: DOS.h:48
TBTK::Solver::Diagonalizer
Solves a Model using diagonalization.
Definition: Diagonalizer.h:52
Streams.h
Streams for TBTK output.
TBTK::Smooth::gaussian
static Array< DataType > gaussian(const Array< DataType > &data, double sigma, int windowSize)
Definition: Smooth.h:88
TBTK::PropertyExtractor::Diagonalizer
Extracts physical properties from the Solver::Diagonalizer.
Definition: Diagonalizer.h:55
TBTK::Solver::Diagonalizer::run
void run()
Diagonalizer.h
Solves a Model using diagonalization.
TBTK::Initialize
void Initialize()
TBTK::Solver::Solver::setModel
virtual void setModel(Model &model)
Definition: Solver.h:69
DOS.h
Property container for density of states (DOS).
SquareLattice.h
Square lattice model.
TBTK::Property::DOS::DOS
DOS()
Definition: DOS.h:143
TBTK::Streams::out
static std::ostream out
Definition: Streams.h:70
TBTK.h
TBTK initialization.
Smooth.h
Collection of functions for smoothing data.
TBTK::Model::construct
void construct()
TBTK::Models::SquareLattice
Square lattice model.
Definition: SquareLattice.h:60
