TBTK::Property::EigenValues Class Reference

Property container for eigen values. More...

#include <EigenValues.h>

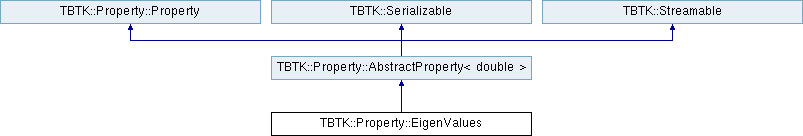

Inheritance diagram for TBTK::Property::EigenValues:
TBTK::Property::AbstractProperty< double > TBTK::Property::Property TBTK::Serializable TBTK::Streamable

Public Member Functions

 EigenValues (int size)

 EigenValues (int size, const double *data)

 EigenValues (const std::string &serialization, Mode mode)

EigenValuesoperator+= (const EigenValues &rhs)

EigenValues operator+ (const EigenValues &rhs) const

EigenValuesoperator-= (const EigenValues &rhs)

EigenValues operator- (const EigenValues &rhs) const

EigenValuesoperator*= (const double &rhs)

EigenValues operator* (const double &rhs) const

EigenValuesoperator/= (const double &rhs)

EigenValues operator/ (const double &rhs) const

virtual std::string toString () const

std::string serialize (Mode mode) const

- Public Member Functions inherited from TBTK::Property::AbstractProperty< double >
unsigned int getBlockSize () const

unsigned int getSize () const

const std::vector< double > & getData () const

std::vector< double > & getDataRW ()

unsigned int getDimensions () const

std::vector< int > getRanges () const

int getOffset (const Index &index) const

const IndexDescriptorgetIndexDescriptor () const

bool contains (const Index &index) const

void reduce (const std::vector< Index > &targetPatterns, const std::vector< Index > &newPatterns)

void hermitianConjugate ()

std::vector< SparseMatrix< double > > toSparseMatrices (const Model &model) const

virtual const double & operator() (const Index &index, unsigned int offset=0) const

virtual double & operator() (const Index &index, unsigned int offset=0)

double & operator() (const std::initializer_list< Subindex > &index)

const double & operator() (const std::initializer_list< Subindex > &index) const

virtual const double & operator() (unsigned int offset) const

virtual double & operator() (unsigned int offset)

void setAllowIndexOutOfBoundsAccess (bool allowIndexOutOfBoundsAccess)

void setDefaultValue (const double &defaultValue)

void replaceValues (const double &targetValue, const double &replacementValue)

virtual std::string toString () const

- Public Member Functions inherited from TBTK::Serializable
template<>
std::string serialize (const bool &data, Mode mode)

template<>
std::string serialize (const double &data, Mode mode)

template<>
std::string serialize (const std::complex< double > &data, Mode mode)

template<>
std::string serialize (const int &data, Mode mode)

template<>
std::string serialize (const unsigned int &data, Mode mode)

template<>
std::string serialize (const SpinMatrix &data, Mode mode)

template<>
std::string serialize (const Statistics &data, Mode mode)

template<>
std::string serialize (const std::vector< std::complex< double >> &data, Mode mode)

template<>
int deserialize (const std::string &serialization, Mode mode)


Friends

EigenValues operator* (const double &lhs, const EigenValues &rhs)


Additional Inherited Members

- Public Types inherited from TBTK::Serializable
enum  Mode { Debug, Binary, XML, JSON }

- Static Public Member Functions inherited from TBTK::Serializable
static bool hasID (const std::string &serialization, Mode mode)

static std::string getID (const std::string &serialization, Mode mode)

static std::string extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)

- Protected Member Functions inherited from TBTK::Property::AbstractProperty< double >
 AbstractProperty ()

 AbstractProperty (unsigned int blockSize)

 AbstractProperty (unsigned int blockSize, const double *data)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize)

 AbstractProperty (const std::vector< int > &ranges, unsigned int blockSize, const double *data)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize)

 AbstractProperty (const IndexTree &indexTree, unsigned int blockSize, const double *data)

 AbstractProperty (const AbstractProperty &abstractProperty)

 AbstractProperty (AbstractProperty &&abstractProperty)

 AbstractProperty (const std::string &serialization, Mode mode)

virtual ~AbstractProperty ()

AbstractPropertyoperator= (const AbstractProperty &abstractProperty)

AbstractPropertyoperator= (AbstractProperty &&abstractProperty)

AbstractPropertyoperator+= (const AbstractProperty &rhs)

AbstractPropertyoperator-= (const AbstractProperty &rhs)

AbstractPropertyoperator*= (const double &rhs)

AbstractPropertyoperator/= (const double &rhs)

- Protected Member Functions inherited from TBTK::Property::Property
 Property ()

virtual ~Property ()

- Static Protected Member Functions inherited from TBTK::Serializable
static bool validate (const std::string &serialization, const std::string &id, Mode mode)

static std::string getContent (const std::string &serialization, Mode mode)

static std::vector< std::string > split (const std::string &content, Mode mode)

template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type serialize (const DataType &data, Mode mode)

template<typename DataType >
static DataType deserialize (const std::string &serialization, Mode mode)

static std::string extract (const std::string &serialization, Mode mode, std::string component)


Detailed Description

Property container for eigen values.

The EigenValues is a Property with DataType double.

Conventions

EigenValues extracted by native PropertyExtractors satisfies the following convention.

  • The eigenvalues are ordered in accending order.

Example

#include "TBTK/PropertyExtractor/Diagonalizer.h"
#include "TBTK/Streams.h"
#include "TBTK/TBTK.h"
using namespace TBTK;
using namespace Visualization::MatPlotLib;
int main(){
const unsigned int SIZE_X = 10;
const unsigned int SIZE_Y = 10;
double t = 1;
Model model = Models::SquareLattice({SIZE_X, SIZE_Y}, {0, t});
model.construct();
solver.setModel(model);
solver.run();
PropertyExtractor::Diagonalizer propertyExtractor(solver);
= propertyExtractor.getEigenValues();
Streams::out << "eigenValues(0) = " << eigenValues(0) << "\n";
Streams::out << "eigenValues(10) = " << eigenValues(10) << "\n";
Streams::out << "eigenValues(99) = " << eigenValues(99) << "\n";

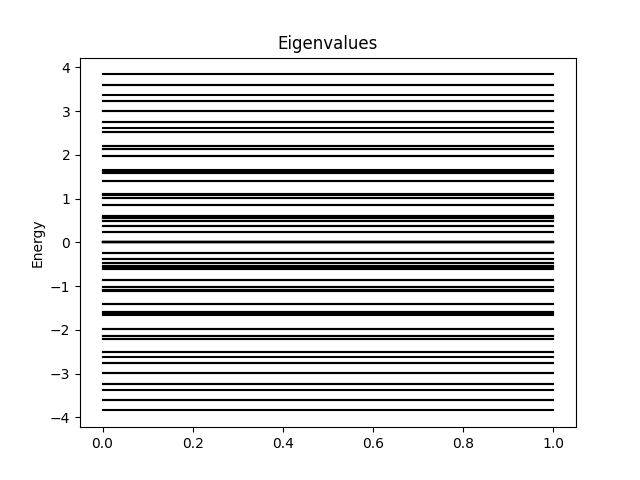

Plotter plotter;
plotter.plot(eigenValues);
plotter.save("figures/EigenValues.png");
}

Output

eigenValues(0) = -3.83797
eigenValues(10) = -2.61944
eigenValues(99) = 3.83797

Constructor & Destructor Documentation

◆ EigenValues() [1/3]

TBTK::Property::EigenValues::EigenValues ( int  size)

Constructs EigenValues.

Parameters
sizeThe number of eigenvalues.

◆ EigenValues() [2/3]

TBTK::Property::EigenValues::EigenValues ( int  size,
const double *  data
)

Constructs EigenValues and initializes it with data.

Parameters
sizeThe number of eigenvalues.
dataRaw data to initialize the EigenValues with.

◆ EigenValues() [3/3]

TBTK::Property::EigenValues::EigenValues ( const std::string &  serialization,
Mode  mode
)

Constructor. Constructs the EigenValues from a serialization string.

Parameters
serializationSerialization string from which to construct the EigenValues.
modeMode with which the string has been serialized.

Member Function Documentation

◆ operator*()

EigenValues TBTK::Property::EigenValues::operator* ( const double &  rhs) const
inline

Multiplication operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new EigenValues that is the product of the EigenValues and the right hand side.

◆ operator*=()

EigenValues & TBTK::Property::EigenValues::operator*= ( const double &  rhs)
inline

◆ operator+()

EigenValues TBTK::Property::EigenValues::operator+ ( const EigenValues rhs) const
inline

Addition operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new EigenValues that is the sum of this EigenValues and the right hand side.

◆ operator+=()

EigenValues & TBTK::Property::EigenValues::operator+= ( const EigenValues rhs)
inline

◆ operator-()

EigenValues TBTK::Property::EigenValues::operator- ( const EigenValues rhs) const
inline

Subtraction operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new EigenValues that is the difference between this EigenValues and the right hand side.

◆ operator-=()

EigenValues & TBTK::Property::EigenValues::operator-= ( const EigenValues rhs)
inline

◆ operator/()

EigenValues TBTK::Property::EigenValues::operator/ ( const double &  rhs) const
inline

Division operator.

Parameters
rhsThe right hand side of the equation.
Returns
A new EigenValues that is the quotient between the EigenValues and the right hand side.

◆ operator/=()

EigenValues & TBTK::Property::EigenValues::operator/= ( const double &  rhs)
inline

◆ serialize()

std::string TBTK::Property::EigenValues::serialize ( Mode  mode) const
virtual

◆ toString()

virtual std::string TBTK::Property::EigenValues::toString ( ) const
virtual

Overriding Streamable::toString().

Implements TBTK::Streamable.

Friends And Related Function Documentation

◆ operator*

EigenValues operator* ( const double &  lhs,
const EigenValues rhs
)
friend

Multiplication operator.

Parameters
lhsThe left hand side of the equation.
rhsThe right hand side of the equation.
Returns
A new EigenValues that is the product of the left hand side and the EigenValues.

The documentation for this class was generated from the following file:
