TBTK::Serializable Class Reference

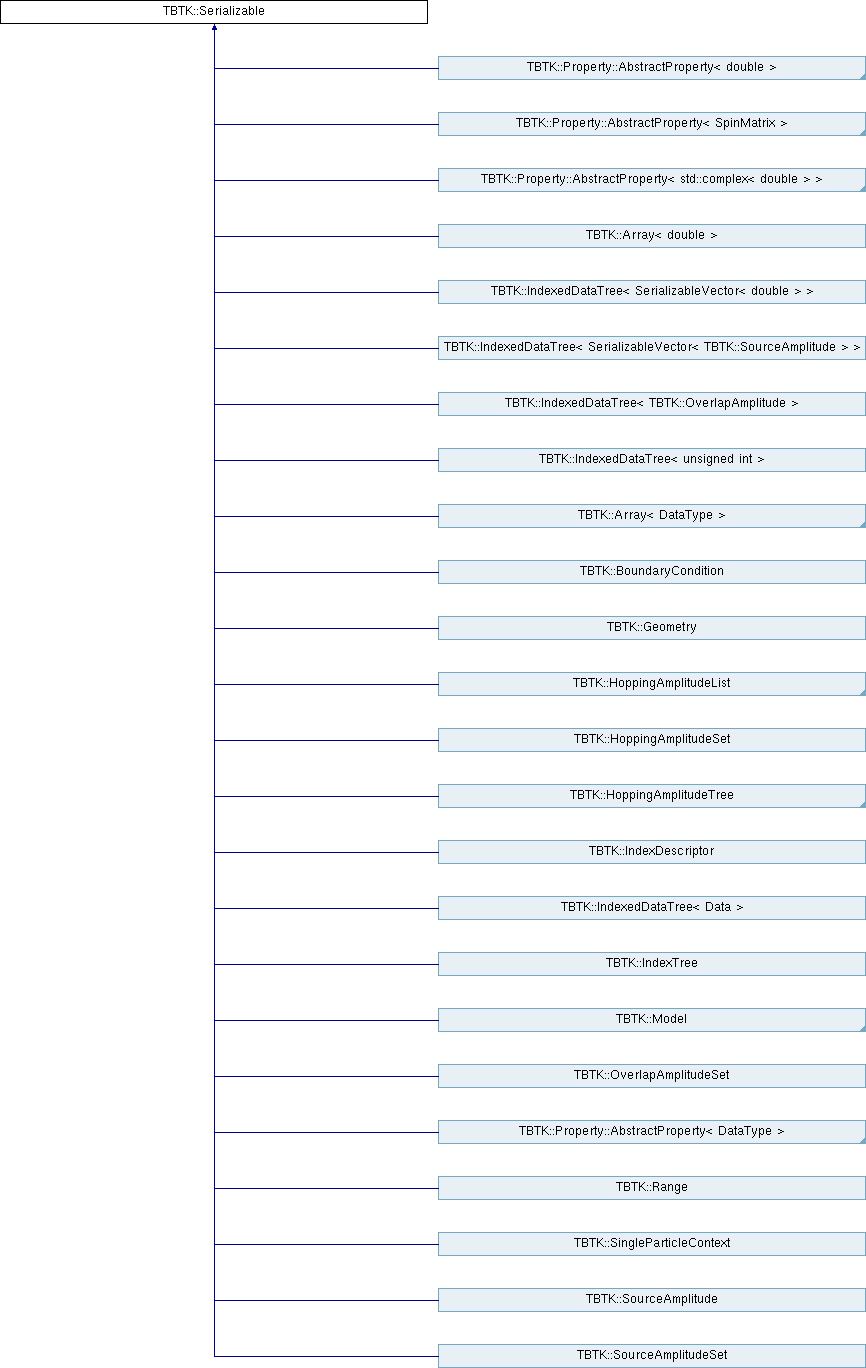

Inheritance diagram for TBTK::Serializable:

Public Types
enum	Mode { Debug, Binary, XML, JSON }

Public Member Functions
virtual std::string	serialize (Mode mode) const =0
template<>
std::string	serialize (const bool &data, Mode mode)
template<>
std::string	serialize (const double &data, Mode mode)
template<>
std::string	serialize (const std::complex< double > &data, Mode mode)
template<>
std::string	serialize (const int &data, Mode mode)
template<>
std::string	serialize (const unsigned int &data, Mode mode)
template<>
std::string	serialize (const SpinMatrix &data, Mode mode)
template<>
std::string	serialize (const Statistics &data, Mode mode)
template<>
std::string	serialize (const std::vector< std::complex< double >> &data, Mode mode)
template<>
int	deserialize (const std::string &serialization, Mode mode)

Static Public Member Functions
static bool	hasID (const std::string &serialization, Mode mode)
static std::string	getID (const std::string &serialization, Mode mode)
static std::string	extractComponent (const std::string &serialization, const std::string &containerID, const std::string &componentID, const std::string &componentName, Mode mode)

Static Protected Member Functions
static bool	validate (const std::string &serialization, const std::string &id, Mode mode)
static std::string	getContent (const std::string &serialization, Mode mode)
static std::vector< std::string >	split (const std::string &content, Mode mode)
template<typename DataType >
static std::enable_if<!std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)
template<typename DataType >
static std::enable_if< std::is_pointer< DataType >::value, std::string >::type	serialize (const DataType &data, Mode mode)
template<typename DataType >
static DataType	deserialize (const std::string &serialization, Mode mode)
static std::string	extract (const std::string &serialization, Mode mode, std::string component)

Friends
class	Index
class	HoppingAmplitude
class	SourceAmplitude
class	OverlapAmplitude
template<typename DataType >
class	CArray

Member Enumeration Documentation

Mode

enum TBTK::Serializable::Mode

strong

Serialization modes. Note that debug is not guaranteed to be backward compatible.

Member Function Documentation

deserialize()

template<typename DataType >

DataType TBTK::Serializable::deserialize ( const std::string &  serialization, Mode  mode  )

staticprotected

Deserialize.

Parameters

serialization	The serialization from which the data is to be deserialized.
mode	The mode with which the data has been serialized.

Returns

The data after deserialization.

extract()

static std::string TBTK::Serializable::extract ( const std::string &  serialization, Mode  mode, std::string  component  )

staticprotected

Extracts a component of a serialization string, catching potential errors. In particular used to extract the serialization string for parents in the constructor of a child, because no try-catch block is possible to insert at this point.

extractComponent()

static std::string TBTK::Serializable::extractComponent ( const std::string &  serialization, const std::string &  containerID, const std::string &  componentID, const std::string &  componentName, Mode  mode  )

static

Extract a component from a container serialization. When serializing classes, their parent are embedded inside the child class serialization. I.e. the parent class is a component contained in the child class serialization. However, when reconstructing a serialized class, its parent constructor has to be called before the child class is constructed. This function provides the means to extract the serialization of a parent class from the serialization of a child class.

Parameters

containerID	ID for the container (child class).
componentID	ID for the component (parent class).
componentName	Name used to refer to the parent object. Only used in some modes.
mode	Mode with which the string has been serialized.

Returns

The serialization string for the component.

getContent()

static std::string TBTK::Serializable::getContent ( const std::string &  serialization, Mode  mode  )

staticprotected

Get the content of a serializtion string.

getID()

static std::string TBTK::Serializable::getID ( const std::string &  serialization, Mode  mode  )

static

Get the ID of a serialization string.

hasID()

static bool TBTK::Serializable::hasID ( const std::string &  serialization, Mode  mode  )

static

Returns true if the serialization string has an ID.

serialize() [1/2]

template<typename DataType >

std::enable_if< std::is_pointer< DataType >::value, std::string >::type TBTK::Serializable::serialize ( const DataType &  data, Mode  mode  )

staticprotected

Serialize.

Parameters

data	The data to serialize.
mode	The mode with which to serialize the data.

Returns

A string containing the serialization of the data.

serialize() [2/2]

virtual std::string TBTK::Serializable::serialize ( Mode  mode ) const

pure virtual

Serialize object.

Implemented in TBTK::Property::EnergyResolvedProperty< DataType >, TBTK::Property::EnergyResolvedProperty< SpinMatrix >, TBTK::Property::EnergyResolvedProperty< double >, TBTK::Property::EnergyResolvedProperty< std::complex< double > >, TBTK::SourceAmplitude, TBTK::BoundaryCondition, TBTK::HoppingAmplitudeList, TBTK::AnnotatedArray< DataType, AxesType >, TBTK::Array< DataType >, TBTK::Array< double >, TBTK::HoppingAmplitudeTree, TBTK::HoppingAmplitudeSet, TBTK::Property::AbstractProperty< DataType >, TBTK::Property::AbstractProperty< SpinMatrix >, TBTK::Property::AbstractProperty< double >, TBTK::Property::AbstractProperty< std::complex< double > >, TBTK::IndexTree, TBTK::Model, TBTK::SourceAmplitudeSet, TBTK::OverlapAmplitudeSet, TBTK::Property::LDOS, TBTK::IndexDescriptor, TBTK::Property::Density, TBTK::Property::DOS, TBTK::SingleParticleContext, TBTK::Property::SpinPolarizedLDOS, TBTK::Property::EigenValues, TBTK::Property::WaveFunctions, TBTK::IndexedDataTree< Data >, TBTK::IndexedDataTree< unsigned int >, TBTK::IndexedDataTree< SerializableVector< TBTK::SourceAmplitude > >, TBTK::IndexedDataTree< TBTK::OverlapAmplitude >, TBTK::IndexedDataTree< SerializableVector< double > >, TBTK::Range, TBTK::Property::Magnetization, and TBTK::Geometry.

split()

static std::vector<std::string> TBTK::Serializable::split ( const std::string &  content, Mode  mode  )

staticprotected

Split content string.

validate()

static bool TBTK::Serializable::validate ( const std::string &  serialization, const std::string &  id, Mode  mode  )

staticprotected

Validate serialization string.

Friends And Related Function Documentation

Index

friend class Index

friend

Friend classes (Classes that are psudo-Serializable because they are so small and often used that a virtual function would have a non-negligible performance penalty).

---

The documentation for this class was generated from the following file:

• /TBTK/Lib/include/Utilities/TBTK/Serializable.h
